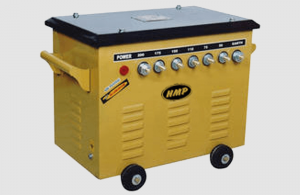

“WELSON" stud type light weight welding machines are built with compact design and attractive look, Effective for repair and maintenance jobs in medium duty cycles. it’s also useful for light production jobs in farms and workshop. The products are made with high grade materials and best finishing, gives superb performance, trouble free service for long period and also make it energy saving. The machine tested under strict quality control measures.
Features
Applications
Specifications
Particulars | Light Duty (Stud Type) Arc Welding Machine | ||
---|---|---|---|
Model | 150A WSS | 200A WSS | 250A WSS |
Input Supply | 230/440 | 230/440 | 230/440 |
Phase | 1 / 2 | 1 / 2 | 1 / 2 |
Frequency | 50 Hz | 50 Hz | 50 Hz |
Welding Current Range With Low & High Range Selection | 45-150 A | 50-200 A | 50-250 A |
Insulation Class | A | A | A |
Open Circuit Voltage (OCV) | 45 | 50 | 50 |
Max. Continuous Hand Welding Current at 60% Duty Cycle | 125 | 170 | 220 |
Welding Electrode Size Min. | 2 MM | 2 MM | 2.5 MM |
Welding Electrode Size Max. | 3.15 MM | 3.15 MM | 3.15 MM |
Cooling | Air Cooled | Air Cooled | Air Cooled |
Approx. Dimensions in mm | H–400
L – 560 W– 385 | H – 480
L – 660 W– 400 | H–500
L –685 W–435 |
Approx. Weight | 42 Kg | 53 Kg | 61 Kg |
“WELSON” Heavy Duty Machine in modern look & design, are perfectly suited for fast production, structura... Continue
